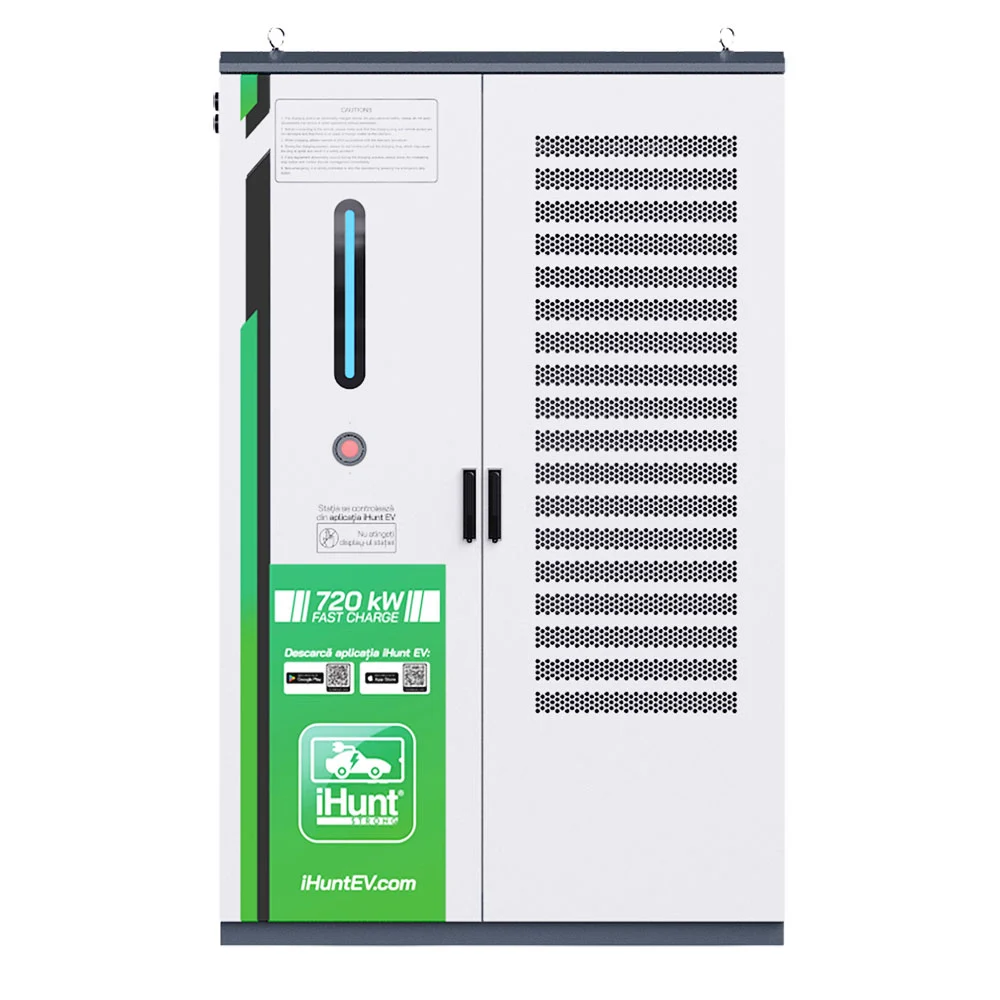

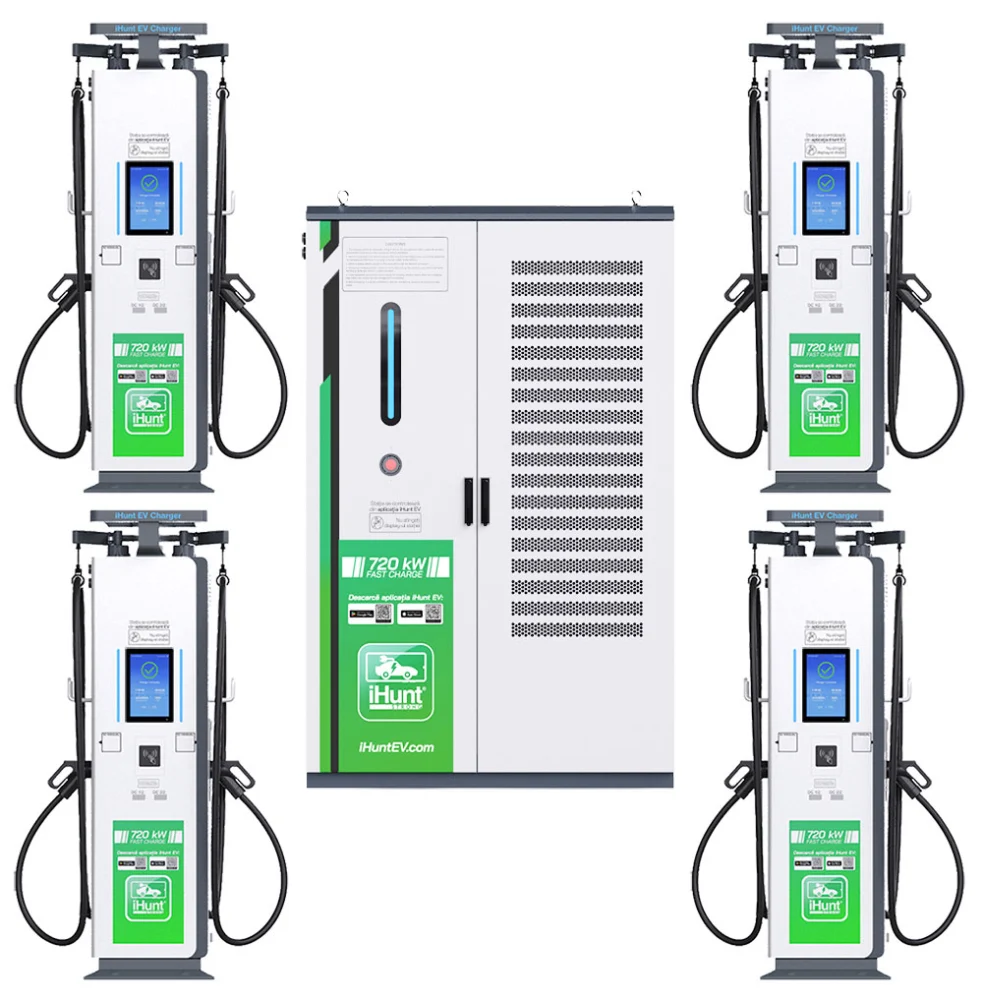

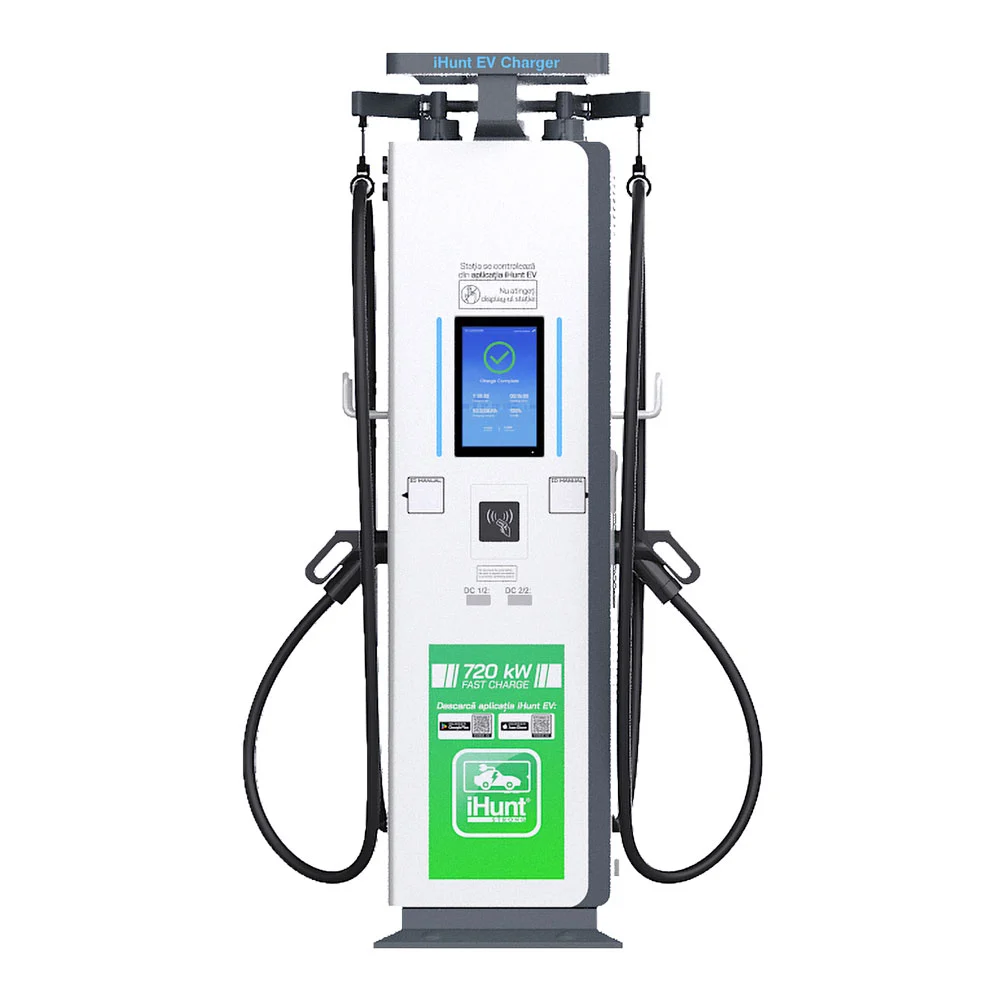

Statie de incarcare Hyper Charger cu monetizare iHunt EV DC V5 720KW 8xCCS2 – Integrare iHuntEV
770.999,00 lei
- Pretul include TVA
- Transport gratuit
- Garantie: 2 ani
PARAMETRII
| S. NO. | Parameters | Requirements |
|---|---|---|
| General Requirements | ||
| 1 | Charger Capacity | 720KW |
| 2 | Model | iHunt EV DC Supercharger 720 kW |
| Input Requirements | ||
| 3 | AC Supply System | Three-Phase, 5 Wire AC system |
| 4 | Nominal Input voltage | AC380V±15%(ENC) |
| 5 | Input frequency | 45-65Hz |
| Environmental Requirements | ||
| 6 | Ambient Temperature Range | -25 to 55°C |
| 7 | Ambient Humidity | 5 to 95% |
| 8 | Storage temperature | -40 to 70°C |
| 9 | Environmental Condition | Outdoor use |
| Mechanical Requirements | ||
| 10 | Mechanical Stability | As per IEC 61851-1 Section 11.11.2 |
| 11 | IP Ratings | IP 55 |
| 12 | Cooling | Forced Air-cooled |
| Output Requirements | ||
| 13 | Number of outputs | 8 |
| 14 | Type of Each Output | DC200-1000V |
| 15 | Output Current | Single gun output Max.: 400Amp(air cooling)；600Amp(liquid cooling) |
| 16 | Output Connector Compatibility | IEC 62196 IEC 61851 |
| 17 | Converter Efficiency | ≥95% at nominal output power |
| 18 | Power Factor | ≥0.99 (Full load) |
| User Interface & Display Requirements | ||
| 19 | Emergency stop switch | Support |
| 20 | Display | 12.1 Inches Touch Screen |
| 21 | User Authentication | QR Code/RFID Card/ Password Login |
| 22 | Metering Information | Consumption Units |
| Communication Requirements | ||
| 23 | Communication between EVSE and Central Server | OCPP 1.6J Protocol |
| 24 | Metering | Grid Responsive Metering as Per Units’ Consumption of Each Vehicle |
| 25 | Interface between charger and CMS | Ethernet/3G/4G/WIFI |
| Protection & Safety Requirements | ||
| 26 | Safety Parameters | Over current, under voltage, Residual current, Surge protection, leakage protection, Short circuit, Over temperature, etc. |
| 27 | Dimensions | 1250*815*1985mm (main cabinet size); 557*455*1992.5mm (terminal size) |
Informații suplimentare
| Tip sistem | Statie incarcare |
|---|---|
| Producator | Hyundai |
