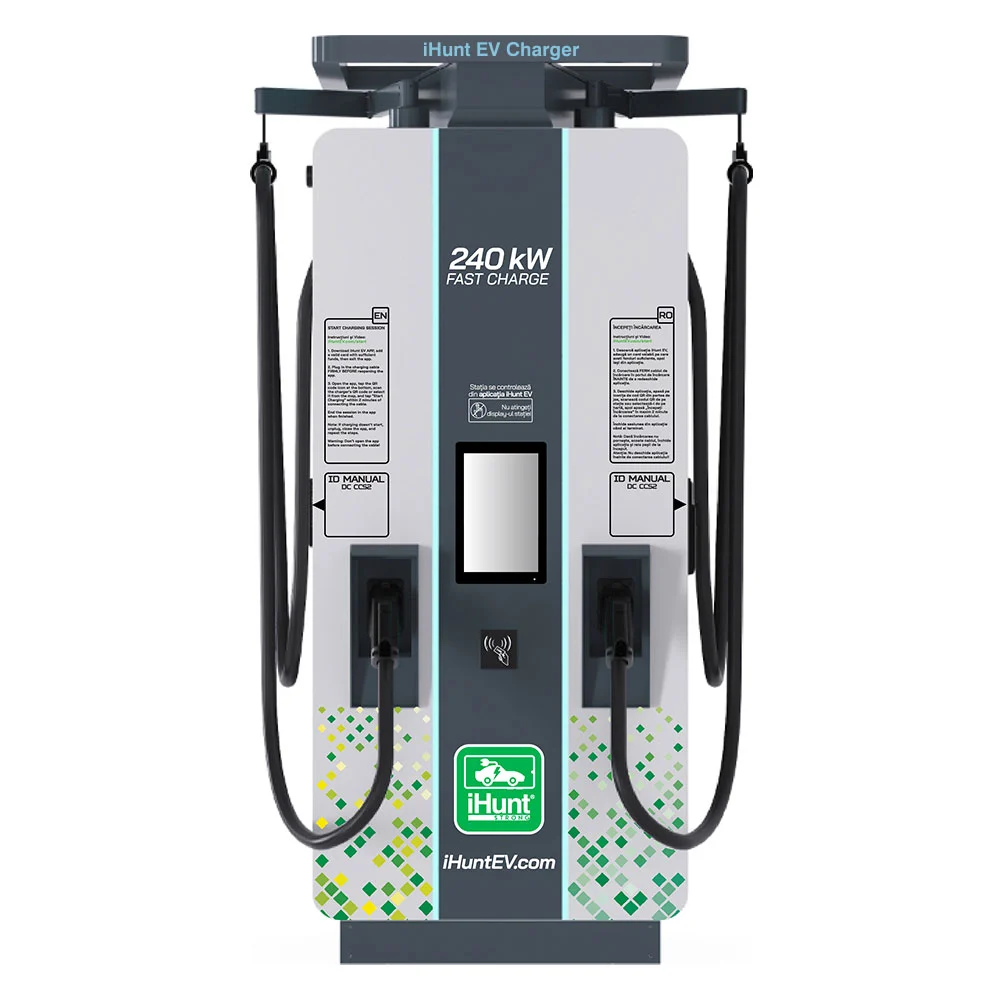

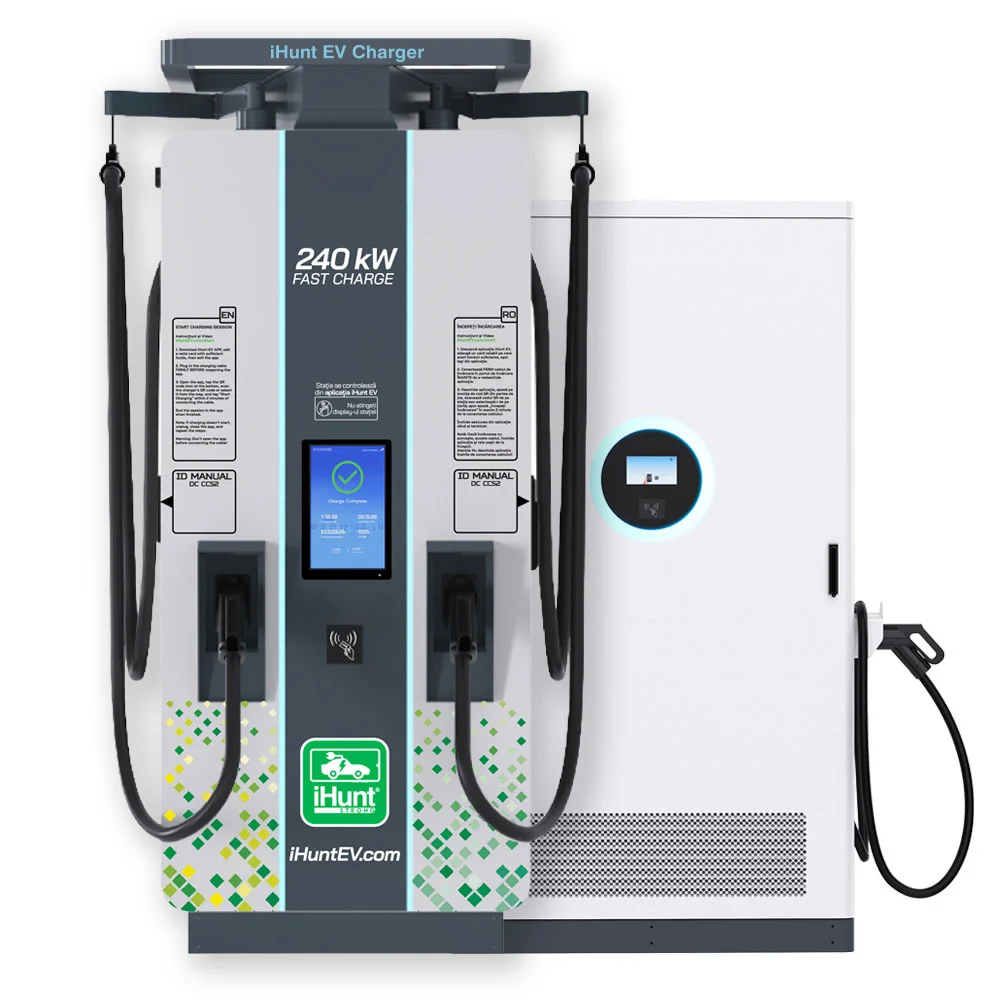

Combo Statie de incarcare ultra rapida cu monetizare iHunt EV DC 240KW V4 2x CCS 2 + Baterie Stocare 400KWh – Integrare iHuntEV
769.999,00 lei
- Pretul include TVA
- Transport gratuit
- Garantie: 2 ani
1. Încărcare rapidă 240kW + stocare 400kWh
2. Funcționează cu energie solară (panouri până la 50kW)
3. Autonomie și eficiență maximă, fără dependență de rețea

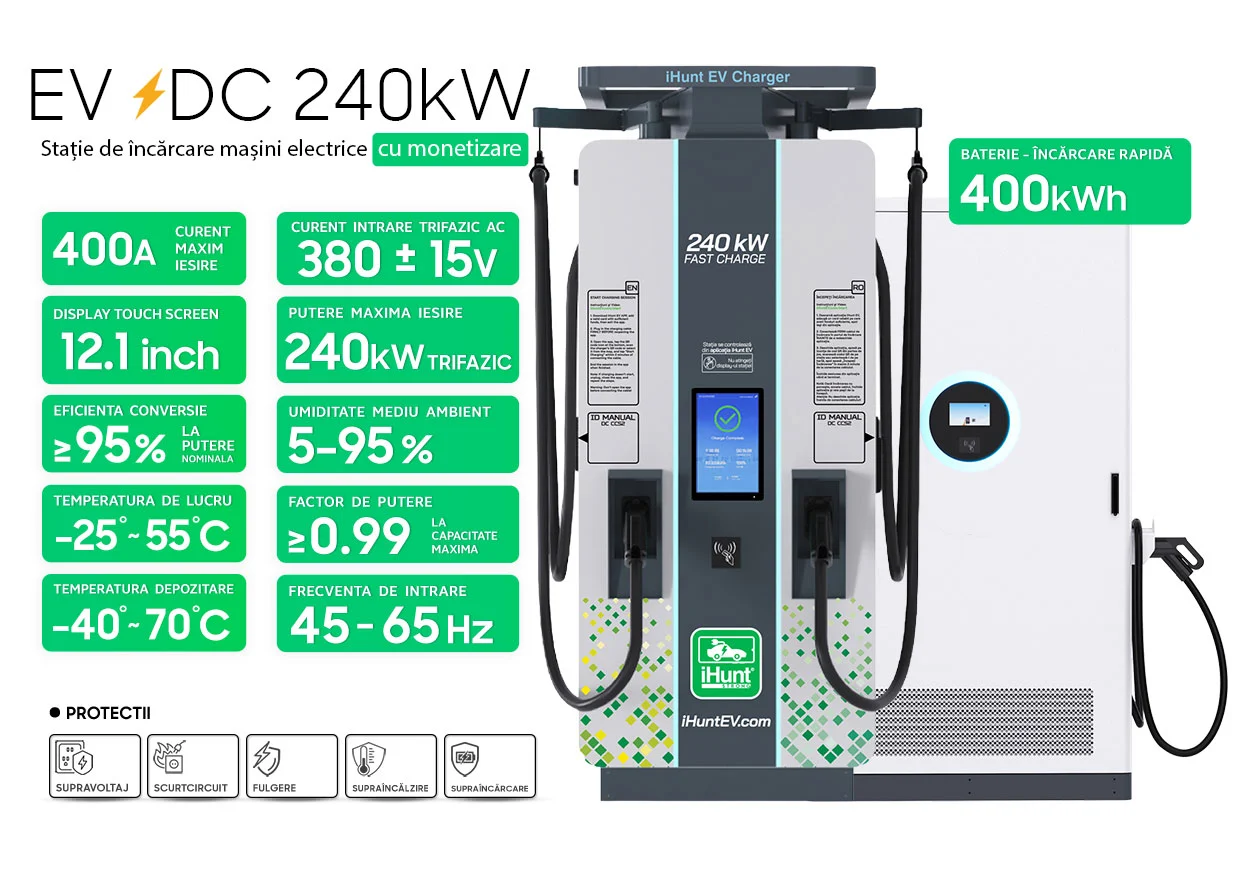

SPECIFICAȚII STAȚIA DE ÎNCĂRCARE – iHunt EV DC 240KW
| S. NO. | Parameters | Requirements |
|---|---|---|
| General Requirements | ||
| 1 | Charger Capacity | 240kW |
| 2 | Model No. | iHunt |
| Input Requirements | ||
| 3 | AC Supply System | Three-Phase, 5 Wire AC system |
| 4 | Nominal Input voltage | AC380V±15% |
| 5 | Input frequency | 45-65Hz |
| Environmental Requirements | ||
| 6 | Ambient Temperature Range | -25 to 55°C |
| 7 | Ambient Humidity | 5 to 95% |
| 8 | Storage temperature | -40 to 70°C |
| Mechanical Requirements | ||
| 9 | IP Ratings | IP 55 |
| 10 | Cooling | Forced Air-Cooler |
| Output Requirements | ||
| 11 | Number of outputs | 2 |
| 12 | Type of each output | DC200-1000V |
| 13 | Single Output Max. Current | 400 Amp Max. |
| 14 | Output Connector Compatibility | IEC 62196, IEC 61851 |
| 15 | Converter Efficiency | ≥95% at nominal output power |
| 16 | Power Factor | ≥0.99 (Full load) |
| User Interface & Display Requirements | ||
| 16 | Emergency stop switch | Support |
| 17 | Display | 12.1 Inches Touch Screen |
| 18 | User Authentication | QR Code/RFID Card /Password Login |
| 19 | Metering Information | Consumption Units |
| Communication Requirements | ||
| 20 | Communication between EVSE and Central Server | OCPP 1.6J protocol |
| 21 | Metering | Grid responsive metering as per units’ consumption of each vehicle |
| 22 | Interface between charger and CMS | Ethernet/3G/4G/WIFI |
| Protection & Safety Requirements | ||
| 23 | Safety Parameters | Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. |
Informații suplimentare
| Tip sistem | Statie incarcare |
|---|---|
| Producator | Hyundai |
